Mike69 and myself both have 2000's we have worked on.

Neither of ours had a dimmer wire in the harness under the dash going to the cruise control pods. So no cruise control lights until we hacked one in. Wire was there from the wheel to the harness but no wire at the harness.

I have another 2000 that has the wire.

My extended cab has HVAC controls that have T5 bulbs and one of the short cabs has the T10's.

So I think it was more like "what crate was delivered to us" on Monday at the assembly line.

____________________
00 XLT 4WD RCSB 3.GO! JalapeÃ±o
01 XLT 2WD RC Steppie 3.0 auto Silver
The future belongs to those who show up.

Already liked - 1 like likes

Junglejoe

Posted: Thu Sep 10th, 2020 08:28 am

127^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

Hahahaaaa. Yeah man. That pretty much sums it up.

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Thu Sep 10th, 2020 09:30 am

128^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

Another ordeal..
I ordered 6.80 pushrods.. get them in finally. I go to set them in the engine and I thought..WAIT!! BETTER MEASURE THEM.

Sure enough..glad I did!! Whats yalls opinion on this... none are 6.80!!

Last edited on Thu Sep 10th, 2020 03:36 pm by Junglejoe

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Thu Sep 10th, 2020 06:57 pm

129^th Post

Idahome

Joined: Wed May 2nd, 2018

Location: Panhandle, Idaho USA

Posts: 2165

Name: Jamie ...

Occupation: Elevator Design Worlds Tallest Buildings ...

Interests: Ranger Based Vehicles and OFFROAD ...

Status:

Offline

Reputation:

Reputation Points: 2165

one thousands and ten thousands of an inch will not matter in the valve train............... 0.016 is not enough to worry about IMO
Hydraulically pumped up lifters and valve springs are forgiving. You should measure the stock stuff....lol see how close they are to each other and how close they are to 1:6 actual rocker ratio (not that close!)

____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks

Already liked - 1 like likes

Junglejoe

Posted: Fri Sep 11th, 2020 05:48 pm

130^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

New set came in... they are not as bad as the first set.. 6.809-6.811
I mean what happened to quality control in this world. Oh well.. time to get this thing together!

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Sat Sep 12th, 2020 10:02 am

131^st Post

Idahome

Joined: Wed May 2nd, 2018

Location: Panhandle, Idaho USA

Posts: 2165

Name: Jamie ...

Occupation: Elevator Design Worlds Tallest Buildings ...

Interests: Ranger Based Vehicles and OFFROAD ...

Status:

Offline

Reputation:

Reputation Points: 2165

quality control stopped at ten thousands of an inch LOL
Speaking of quality control, the old Sears in town (closed earlier this year) is not becoming a Harbor Freight! Best news ever. Old HF was 50 miles from me, new one is 9 miles
Life is good

____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks

Already liked - 1 like likes

Junglejoe

Posted: Sat Sep 12th, 2020 06:34 pm

132^nd Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

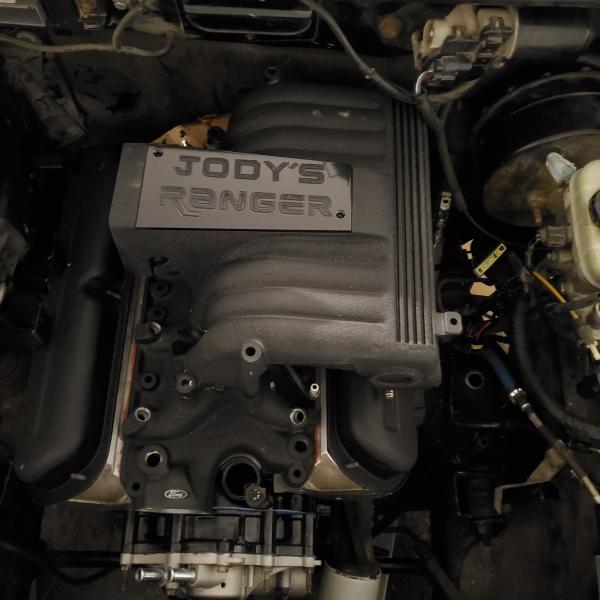

So..My custom Intake cover plate came in... tried the polish version, then the painted letters..then crinkle paint the letters and vht gloss black the plate..

then I have the "Ranger 5.0L"

Last edited on Sat Sep 12th, 2020 06:35 pm by Junglejoe

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked - 1 like likes

410customs

Posted: Mon Sep 14th, 2020 04:58 pm

133^rd Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

Not much to.report on yet.. waitining on lifters.. speaking of..
Has anyone heard or know if the ford racing lifters are shorter than the oem explorer lifters?? I read that somewhere... before I torqued the heads on I made sure I could get all the lifters in the holes.. Thats a go!

I got off work a little early.. went ro the junkyard, or as I call it my sanctuary..lol

Got a couple plugs (ac stuff)and FINALLY got one with the 3 wires that everyone talks about..so I snatched it too..
I also cut the wiring loom off to see exactly what is going on. I need to see stuff to understand it.. just how I am on wiring. Now, I have a complete understanding of whats going on. Plus James has helped me TREMENDOUSLY!! Thank you sir for not cussing me out..â˜•

By the way.. anyone needs any stuff from the yard, small stuff that can be mailed.. let me know.. I sometimes go out there when I have time just to look at stuff. Take stuff apart to see how it goes.. fun for me and I learn at the same time. This particular yard I go to has quit a bit of explorers and rangers.

Last edited on Mon Sep 14th, 2020 04:59 pm by Junglejoe

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked - 1 like likes

410customs

Posted: Tue Sep 15th, 2020 08:48 am

134^th Post

Idahome

Joined: Wed May 2nd, 2018

Location: Panhandle, Idaho USA

Posts: 2165

Name: Jamie ...

Occupation: Elevator Design Worlds Tallest Buildings ...

Interests: Ranger Based Vehicles and OFFROAD ...

Status:

Offline

Reputation:

Reputation Points: 2165

you are welcome!!
That plug is interesting, 3 wires, one starter two ac clutch........nice and simple!
I love junk yards

____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks

Already liked - 1 like likes

Junglejoe

Posted: Tue Sep 15th, 2020 09:02 am

135^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

So my plans is to make two plugs...
This one to the starter and ac clutch..

Another for the switch by the radiator.. should make it very simple plug and play.

That way when I pull the engine out later for the 331, I can just unplug the two plugs.

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked - 1 like likes

410customs

Posted: Tue Sep 15th, 2020 08:06 pm

136^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

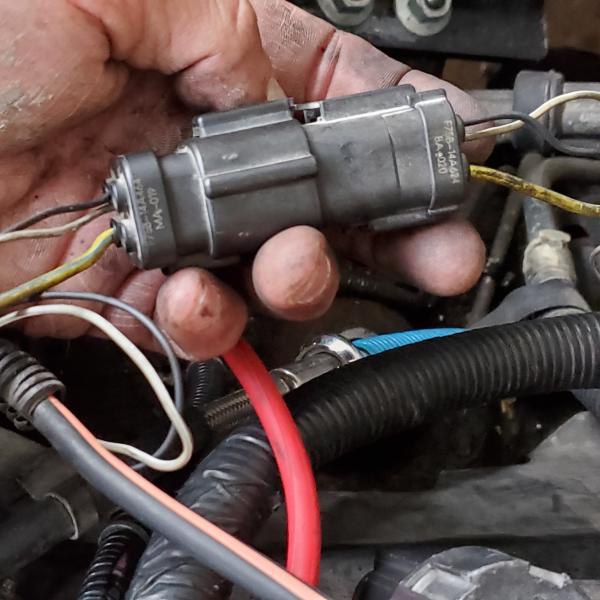

Ok... so here we go.... made the main plug for the ac/starter..
The two wire I took out were green/white and black.. they went to the oil pan for the sensor for low oil light..

I think this will work how I have this now..please correct me if I'm wrong...

I still need to find some kind of two prong or small plug for the original ranger high/low pressure witch ( the one by the radiator)

This pic is the two wires in the plug, is it to the ac compressor..so..this has to be right?

Last edited on Tue Sep 15th, 2020 08:12 pm by Junglejoe

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Wed Sep 16th, 2020 09:03 am

137^th Post

Idahome

Joined: Wed May 2nd, 2018

Location: Panhandle, Idaho USA

Posts: 2165

Name: Jamie ...

Occupation: Elevator Design Worlds Tallest Buildings ...

Interests: Ranger Based Vehicles and OFFROAD ...

Status:

Offline

Reputation:

Reputation Points: 2165

yes it is correct grey/white is compressor clutch feed, black with white is the ground
The switch by the radiator is the high pressure side. The low pressure side is over by the heater blower fan
You need a plug for the low pressure switch, you should have one in your 5.0 / 4.0 wiring stuff??

____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks

Already liked - 1 like likes

Junglejoe

Posted: Wed Sep 16th, 2020 10:58 am

138^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

Yes James... My 3.0 still has the plug connected..can I keep as it or do I tap into the wiring in my post above and ryn new wires?

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Wed Sep 16th, 2020 12:37 pm

139^th Post

Idahome

Joined: Wed May 2nd, 2018

Location: Panhandle, Idaho USA

Posts: 2165

Name: Jamie ...

Occupation: Elevator Design Worlds Tallest Buildings ...

Interests: Ranger Based Vehicles and OFFROAD ...

Status:

Offline

Reputation:

Reputation Points: 2165

You can use your existing plug!

____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks

Already liked - 1 like likes

Junglejoe

Posted: Wed Sep 16th, 2020 06:41 pm

140^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

Thank ya sir.. appreciate all the help on this freakin wiring.. finally done. Lol

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked - 2 likes

Eddie Money, 410customs

Posted: Fri Sep 18th, 2020 07:39 pm

141^st Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

So.. finally.. the wiring is compete. Bought a two wire connector from O'Reilly's.. was going to go to the junkyard to find one out of something, but I have to work Saturday. Think it was only like 5 bucks anyway

Using the ranger chassis side factory low pressure switch wires,(red/yellow and black/white) I simplu soldered the new two prong plug on..and on the low pressure switch. Basically it has it on little 2 wire harness.

My 30lb Ev6 4 hole injectors came in today. Should work out great. I might could have gotten away with 24 lb injectors, we'll see. Better to be safe than sorry..

I've got to get this together and running so I dont miss my dyno appointment. They are in 2-3 week backup. I reserved my spot so hopefully I dont have to call and cancel. It cutting it real close.
I have to drop my headers off still to have them ceramic coated..that takes a week and half he said. Been to busy at work.. but thats ok! Not complaining about that

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Sat Sep 19th, 2020 10:44 am

142^nd Post

Idahome

Joined: Wed May 2nd, 2018

Location: Panhandle, Idaho USA

Posts: 2165

Name: Jamie ...

Occupation: Elevator Design Worlds Tallest Buildings ...

Interests: Ranger Based Vehicles and OFFROAD ...

Status:

Offline

Reputation:

Reputation Points: 2165

YES!!!!!!!!!! Much easier to turn down an injector then to run it at full duty cycle all the time..........
We are lucky to be working that is for sure.....lots of people need carpet and flooring before the holidays!!!!!!!!! Happens every year.
Excited to see this come together!

____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks

Already liked - 1 like likes

Junglejoe

Posted: Sat Sep 19th, 2020 02:25 pm

143^rd Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

Its been a journey no doubt.. 2 years in the making. And big thanks to you J for the wireing help!

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Sat Sep 19th, 2020 02:27 pm

144^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

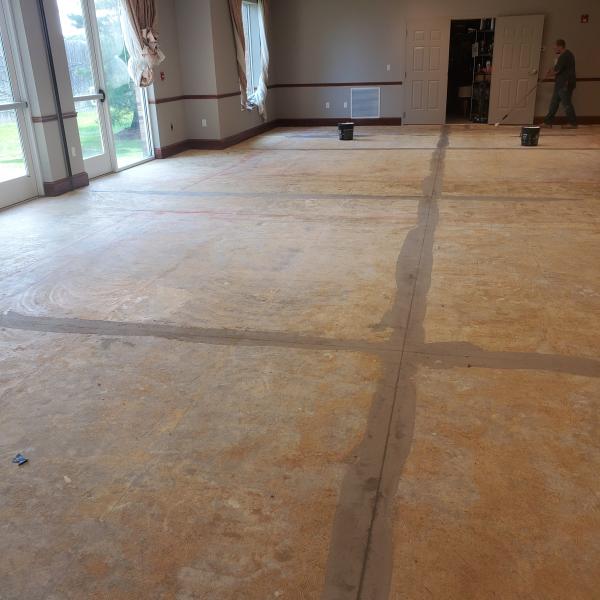

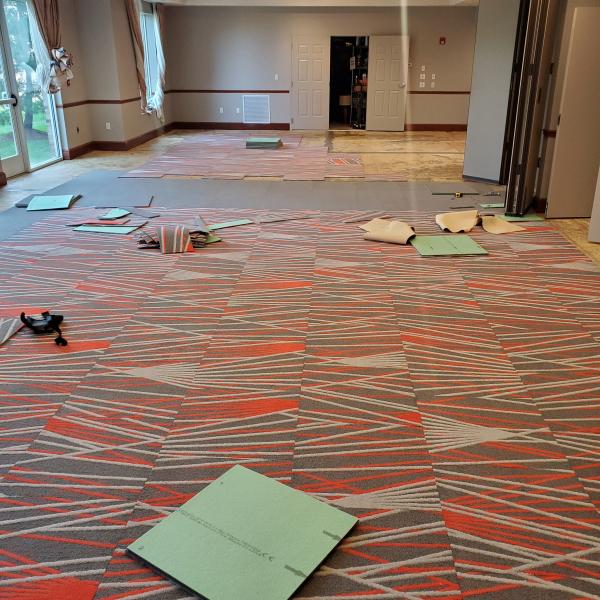

at work at this hotel right now..

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Sun Sep 20th, 2020 09:23 am

145^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

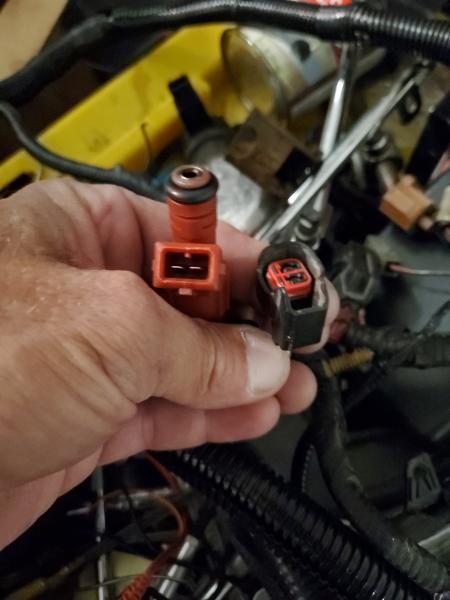

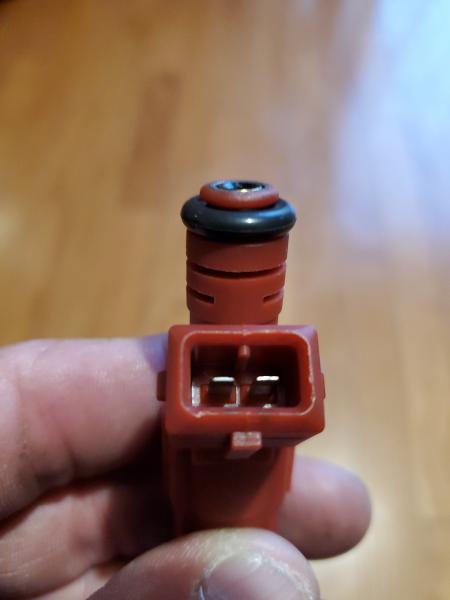

Minor setback... the injectors I ordered bave the wrong connector!! %*@!%^!!
I need "jetronic" connectors..these are "uscar" connectioned..
So..Ill sell these or send them back.. anhone need any?..lol

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Sun Sep 20th, 2020 11:24 am

146^th Post

Idahome

Joined: Wed May 2nd, 2018

Location: Panhandle, Idaho USA

Posts: 2165

Name: Jamie ...

Occupation: Elevator Design Worlds Tallest Buildings ...

Interests: Ranger Based Vehicles and OFFROAD ...

Status:

Offline

Reputation:

Reputation Points: 2165

happens all the time..... 16 wires to solder, you can new connects at your fav junk yard :)
Peel and stick looks awesome dude, people have no idea what it takes to layout the carpet in a hotel/casino/cruise ship.... commercial jobs are where the big profit is!!!!!!!!!!!!!!!!!!

____________________
I build custom RBV, specializing in drivetrain conversions, wiring, suspension and complete custom trucks

Already liked - 1 like likes

Junglejoe

Posted: Sun Sep 20th, 2020 05:54 pm

147^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

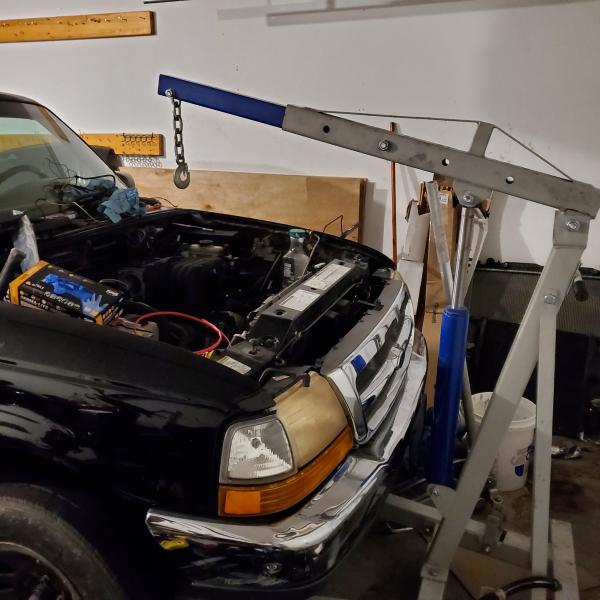

Major progress today.. I played hooky from.work..SHHHH!!!!

Old mock up block out..

I set the intake and valve covers on to get a vision..FINALLY!!!

Last edited on Sun Sep 20th, 2020 05:55 pm by Junglejoe

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked - 1 like likes

Eddie Money

Posted: Sun Sep 20th, 2020 09:02 pm

148^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

Welp.. Another small issue.. I have to run taller valve covers because the stock explorer valve covers won't clear the roller rockers..
Which means I have to run a 1 inch or bigger spacer under the upper intake..
%#*!^$&**!.. thats all for now.. lol

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Mon Sep 21st, 2020 02:46 pm

149^th Post

Junglejoe
Member

Joined: Tue Jun 30th, 2020

Location: Missouri USA

Posts: 293

Name:

Occupation:

Interests:

Status:

Offline

Reputation:

Reputation Points: 293

Little ding here..little ding there..never hurt nobody...lol

So that ridge is what kept the valve covers from fitting over the polly locks..now..sand it them again and repaint.. once the valve cover gasket is on..be good to go!

____________________
2000 EFI 302 Zspec T5 swap ranger

Already liked -

Posted: Mon Sep 21st, 2020 07:22 pm

150^th Post

Tsquare
Member

Joined: Fri Nov 10th, 2017

Location: Suwanee, Georgia USA

Posts: 1540

Name:

Occupation: Controlled Insanity ...

Interests:

Status:

Offline

Reputation:

Reputation Points: 1540

I had to go back a few post to see which heads you used. I know you used Trick Flo's Twisted Wedge heads but with Dart heads it is best to get their brand of valve covers. The mating surface was a bit wider so stock and most other branded aftermarket valve covers didn't fit without modifications. Is this the same case for the Twisted Wedge heads?

____________________
Tony
NE ATL
'04 XLT regular cab 3.slo stepside
Semi retirement

Already liked - 1 like likes

Junglejoe
